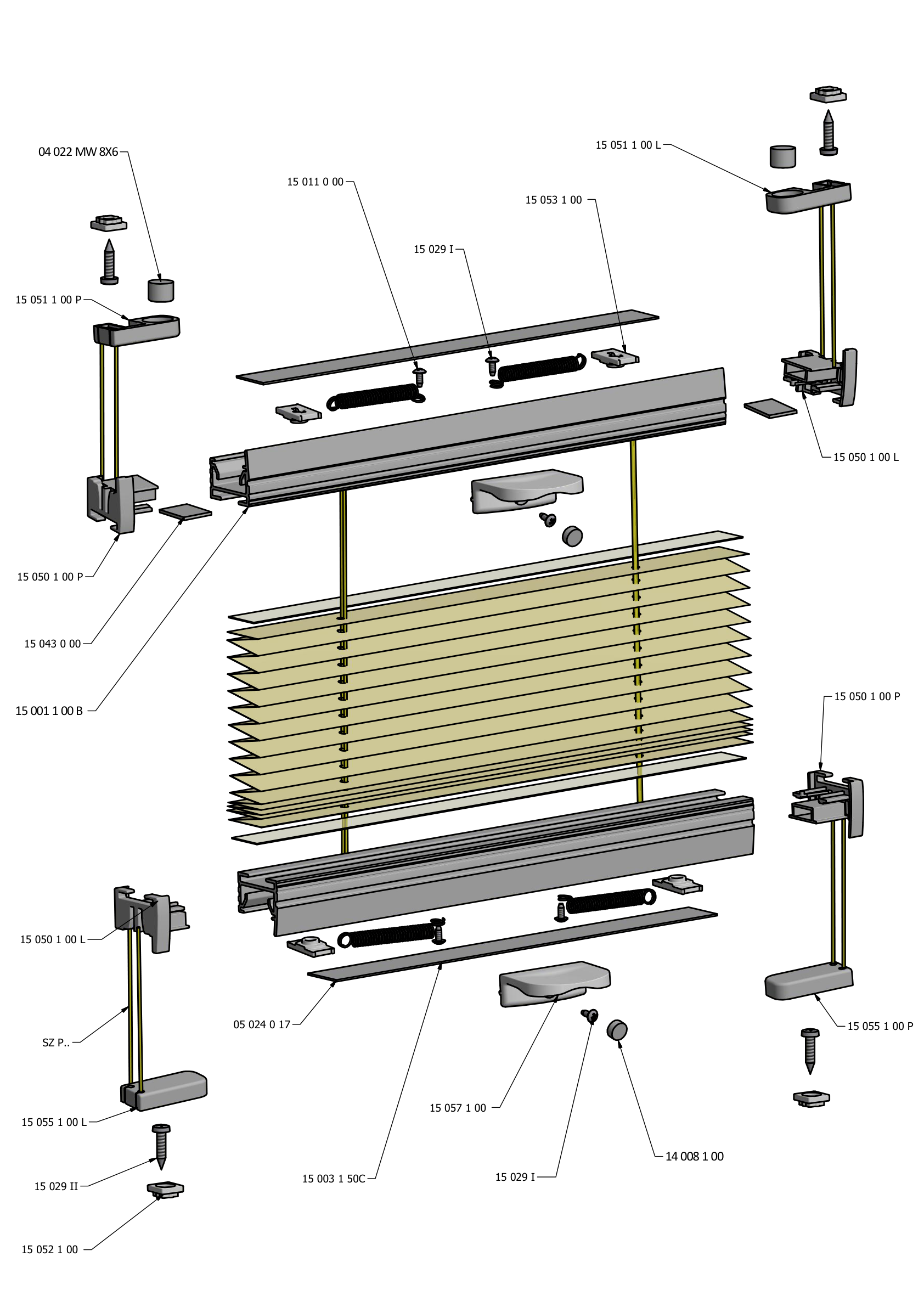

PLISA BESTA system drawing
PLISA BESTA exploded view

The PLISA BESTA system is a pleated blind with a simple design that effectively shields the room from excessive sunlight. As a two-way system controlled with an up-down handle, it is the only shade that can cover any part of the window.

Non-invasive mounting is available. All profiles are aluminium (also offered in matt and wood-like finish). The double Duoplisso honeycomb fabric acts as an insulator, protecting from heat in summer and preventing heat loss in winter. Pleats are mounted on magnetic clips (or without magnet) to prevent them from dropping, and the asymmetric profile allows installation on windows with bevelled glazing strips.

Mounting: on the window frame, or inside the glass light to the glazing strips.

Mounting method:

  • Invasive – screw fixing
  • Non-invasive – frame brackets or adhesive fixing on the window frame

Aluminium profile: standard, matt, wood-like.

Fabrics: Standard, blackout, double Duoplisso.

Download main drawing (PDF)

mounting options

Invasive mounting

Fixed to the window frame with screws. Select the fixing plate depending on whether a magnet is required.

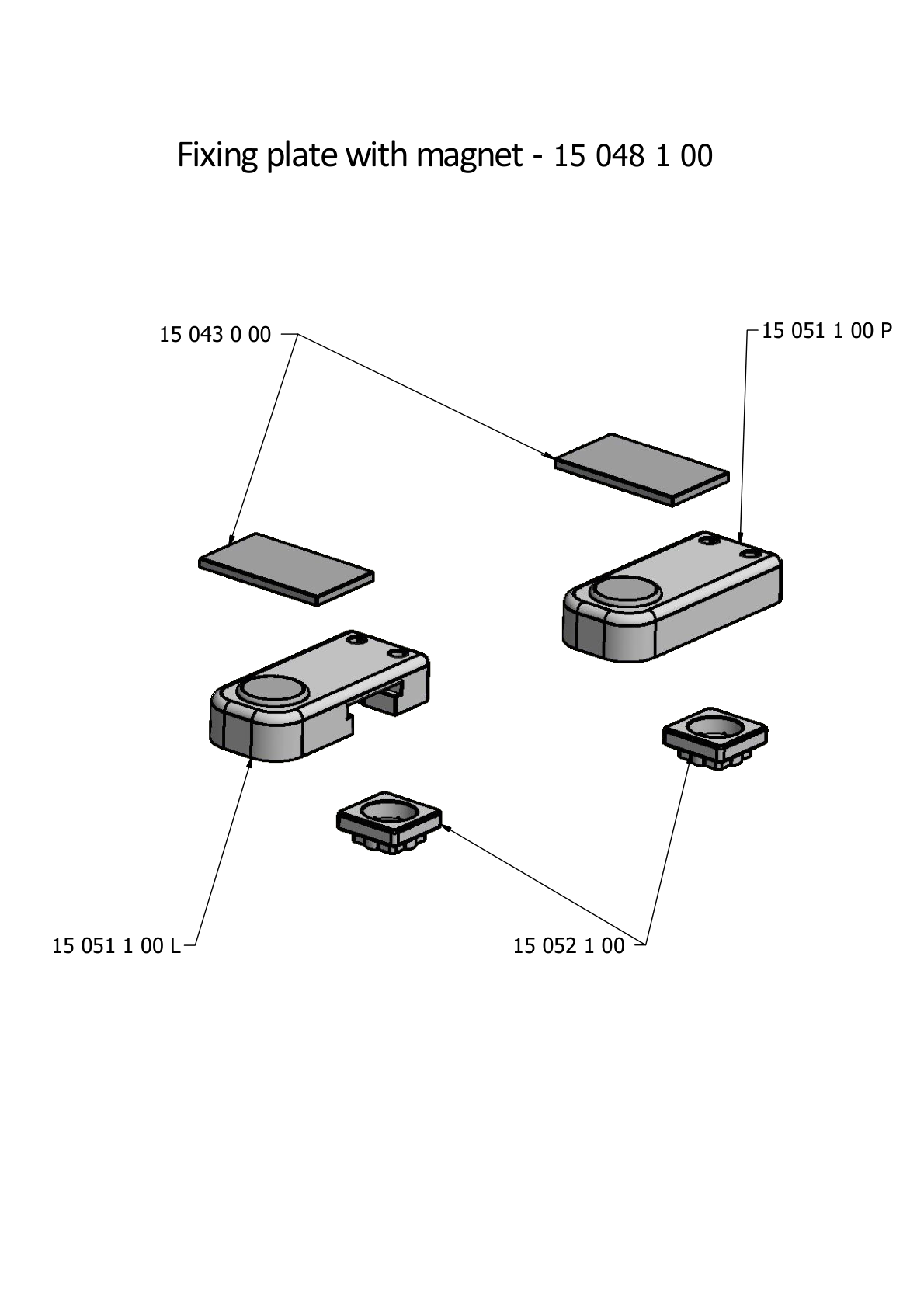

Fixing plate with magnet

Code: 15 048 1 00

Mounting: Invasive (on screws)

Fixing plate with magnet

Download drawing (PDF)

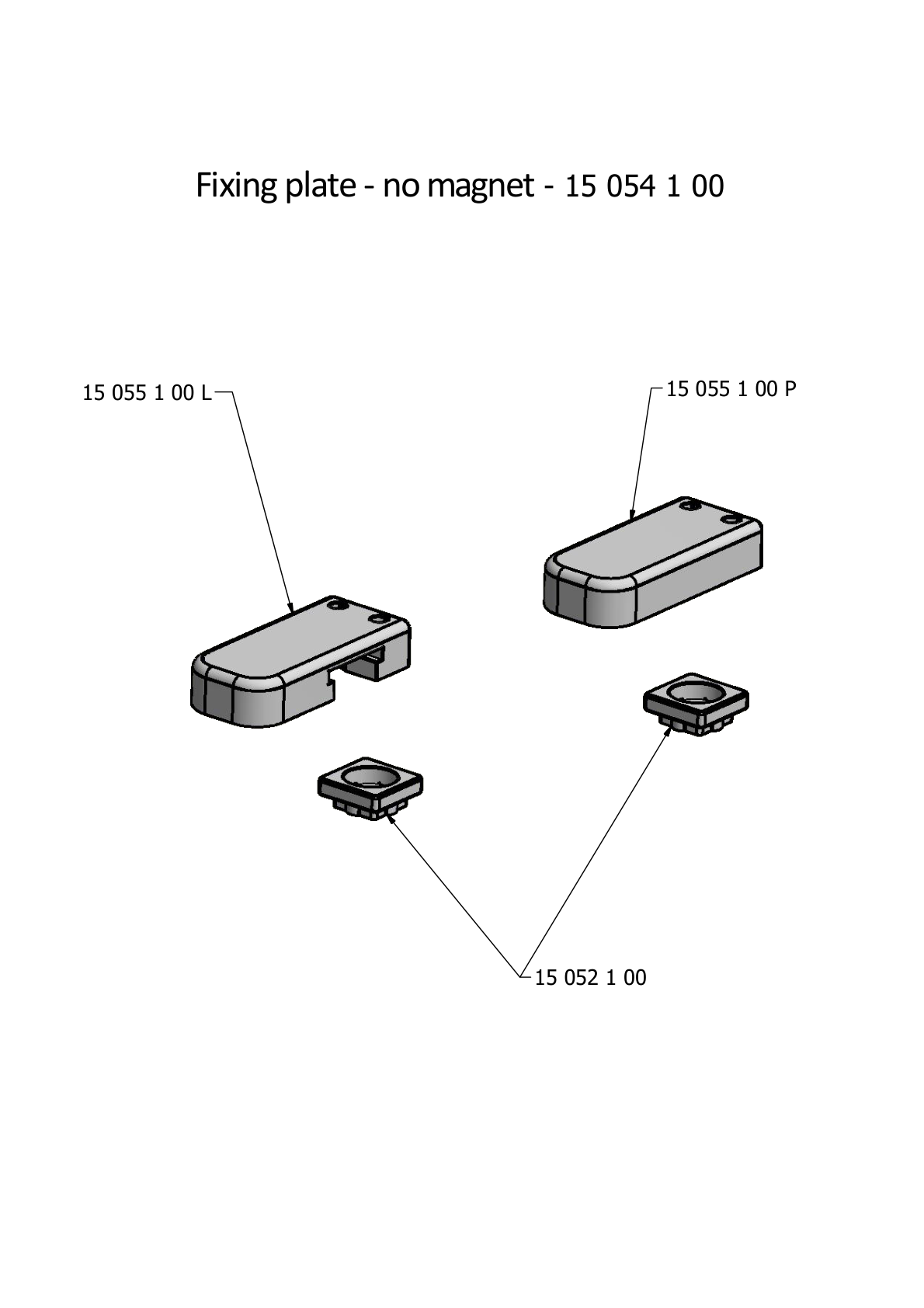

Fixing plate – no magnet

Code: 15 054 1 00

Mounting: Invasive (on screws)

Fixing plate without magnet

Download drawing (PDF)

Non-invasive mounting

No drilling into the window frame. Choose between a clip-on bracket or an adhesive tape base.

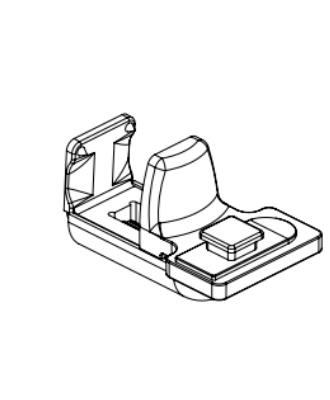

Non-invasive fixation – bracket

Code: 15 047 1 00

Mounting: Non-invasive (frame clip)

Non-invasive fixation – bracket

Download drawing (PDF)

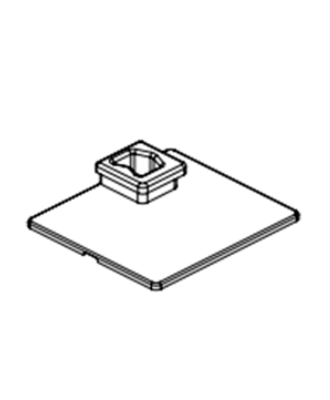

Non-invasive fixation – tape

Code: 15 046 1 00

Mounting: Non-invasive (adhesive)

Non-invasive fixation – tape

Download drawing (PDF)
